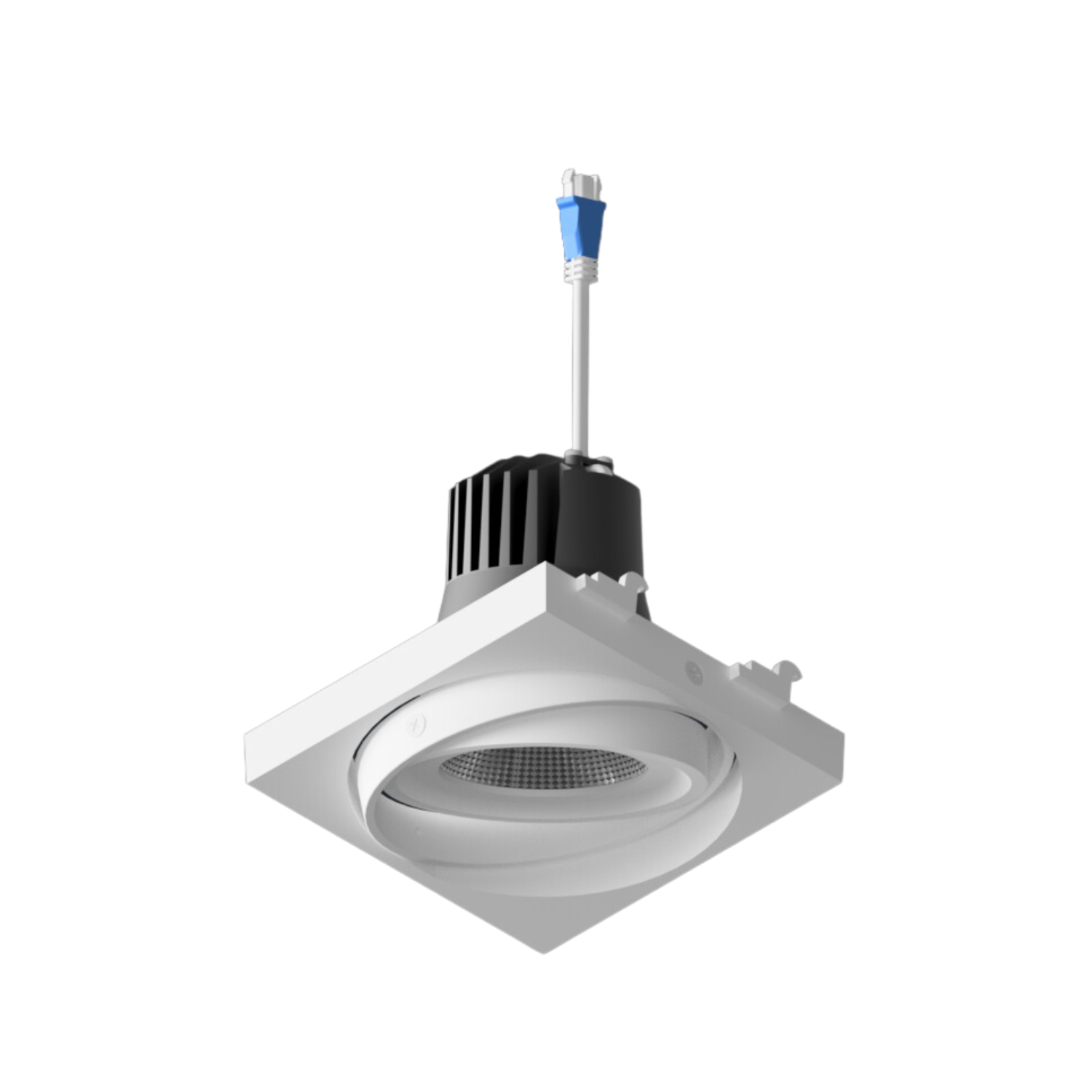

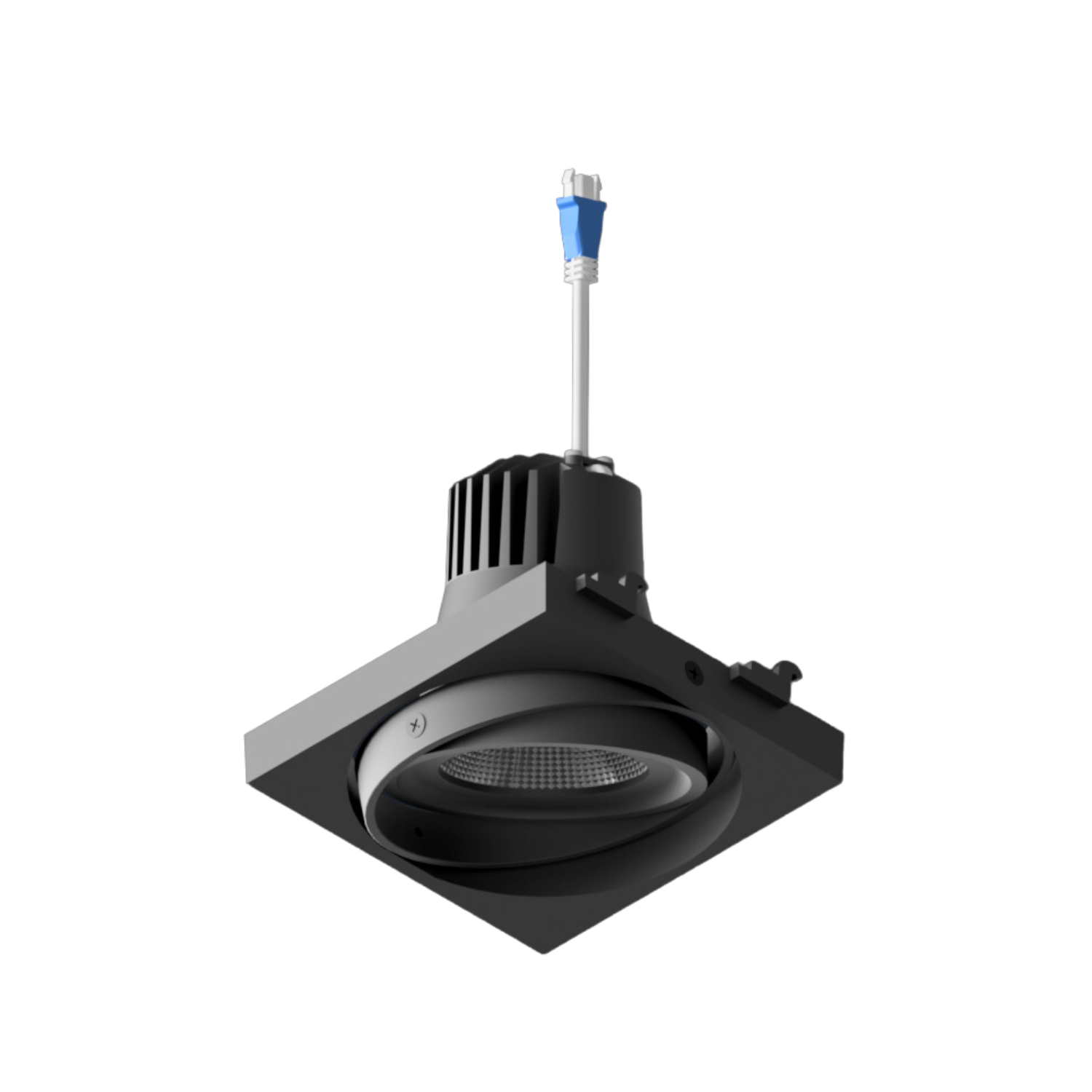

DLV-R Gimbal Downlight/ Cut out: 155x155mm / LED <32W
Product Data:
Physical parameters
.
Distributions: 18° / 24° / 36° / 45° / 60°
IP: 20

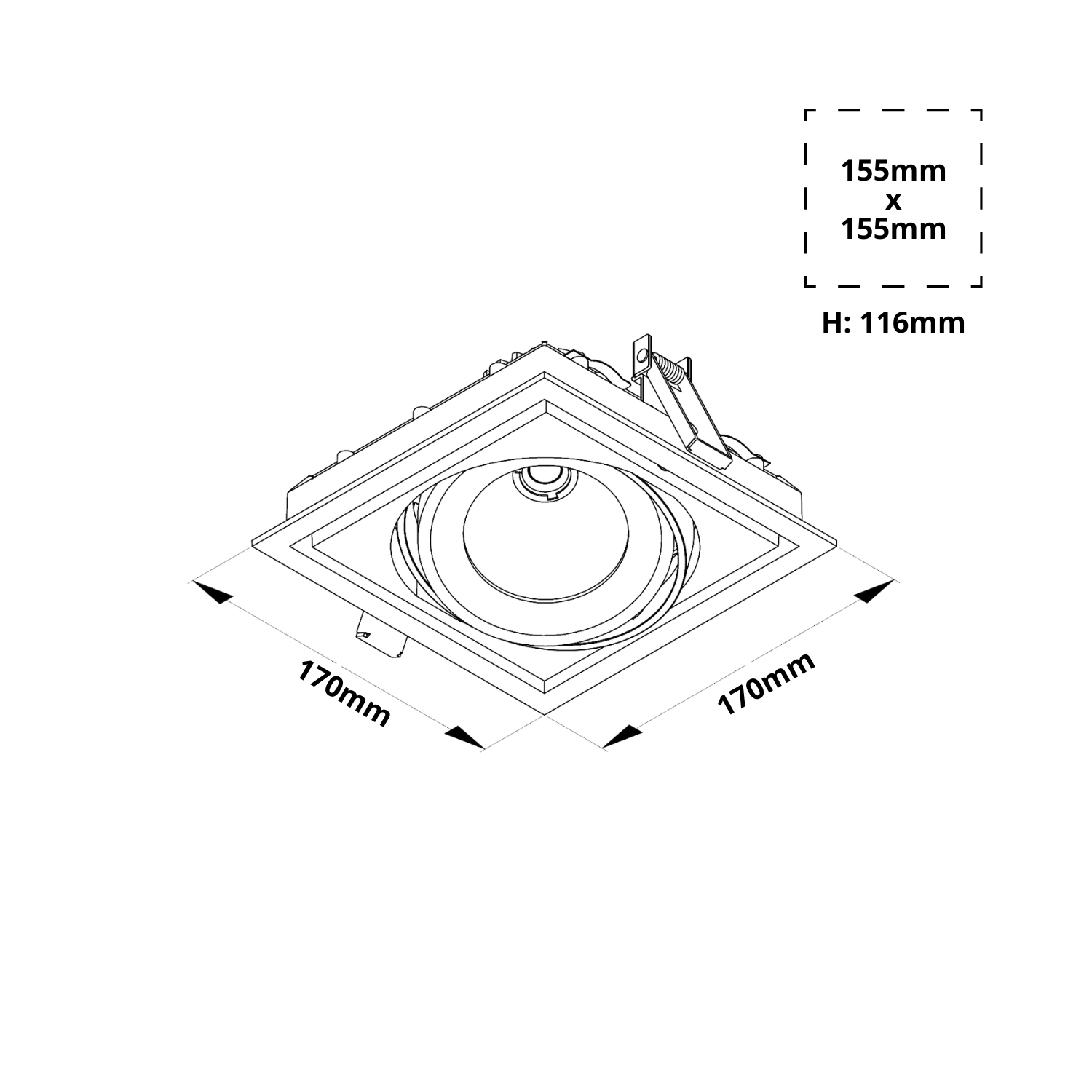

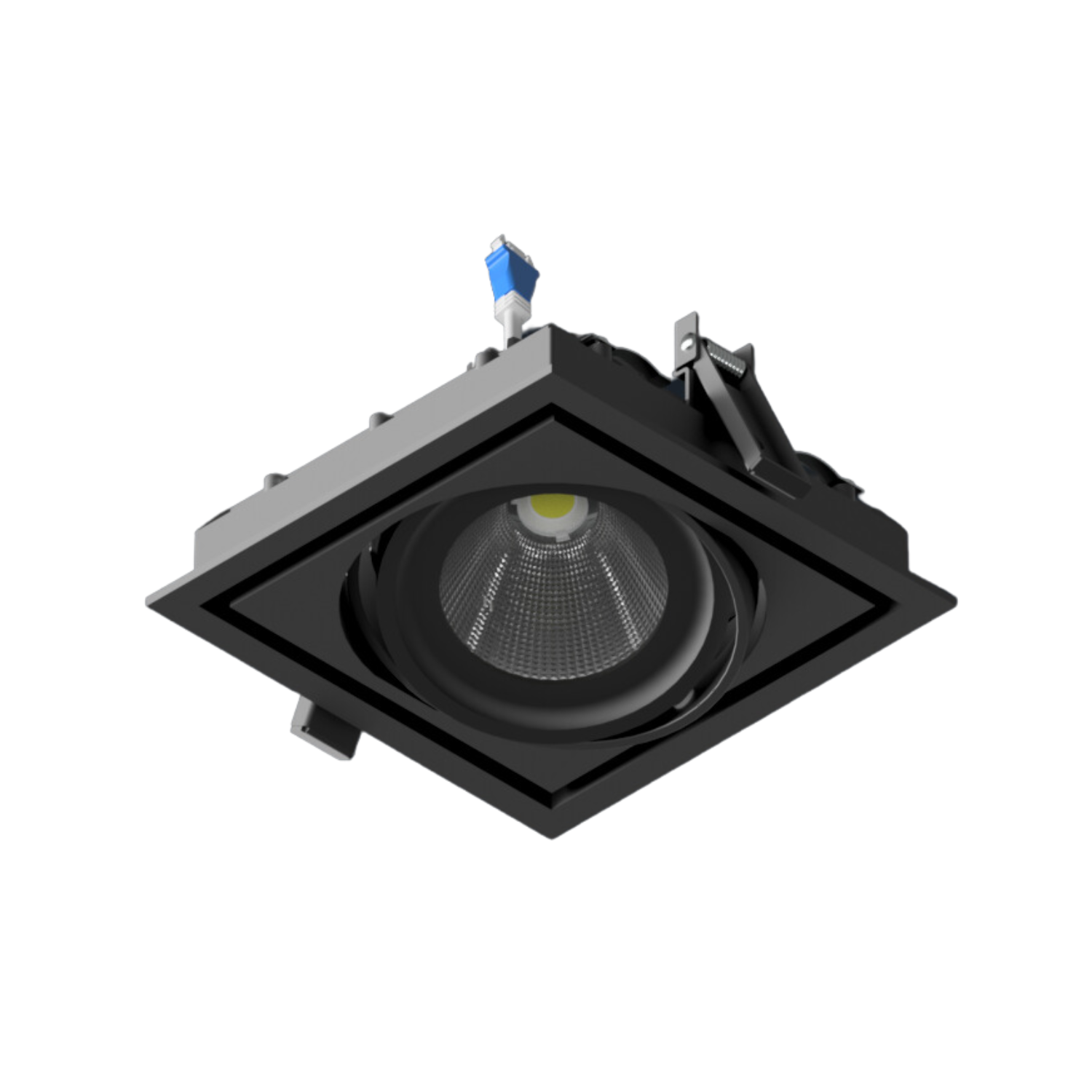

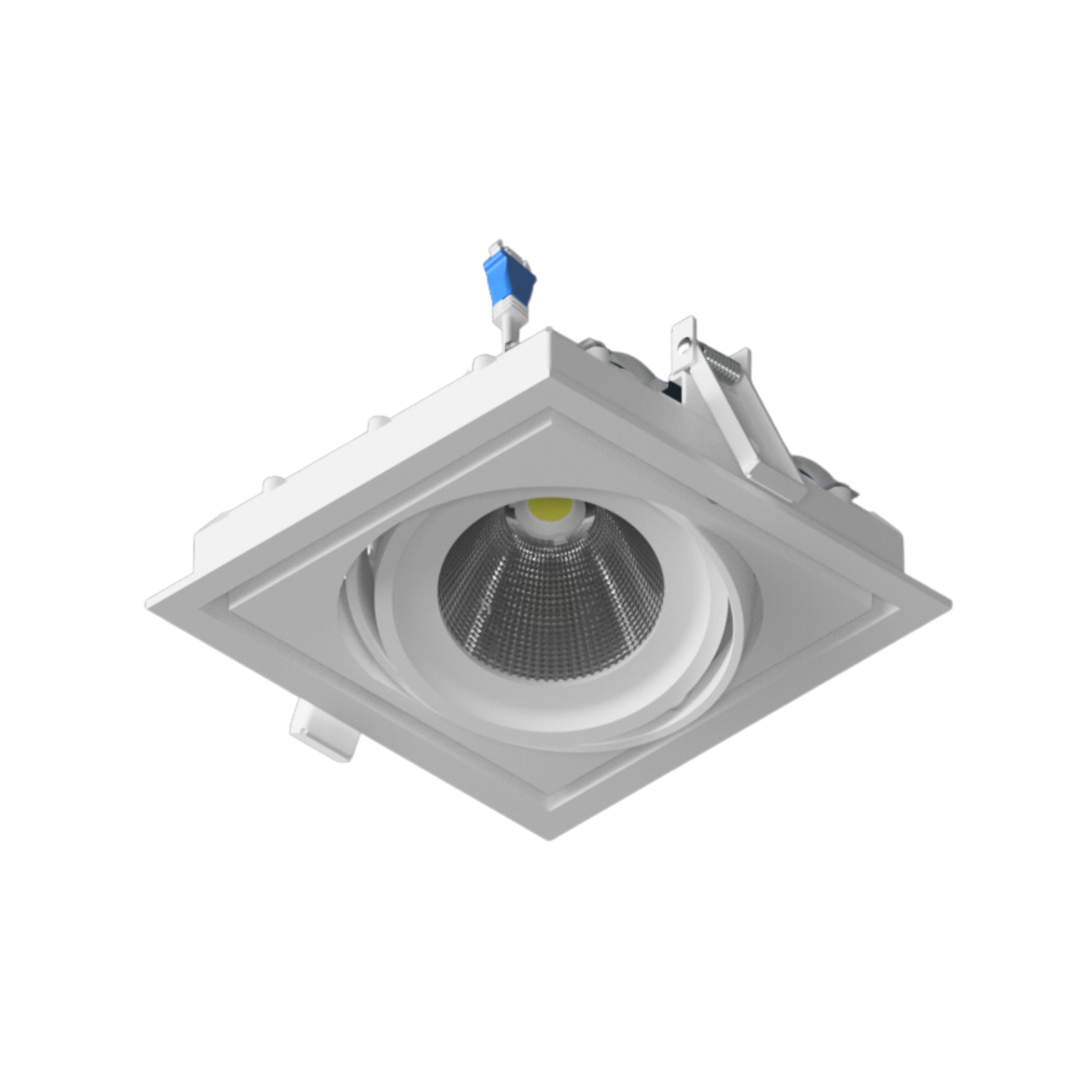

Single Cut out: 155x155mm

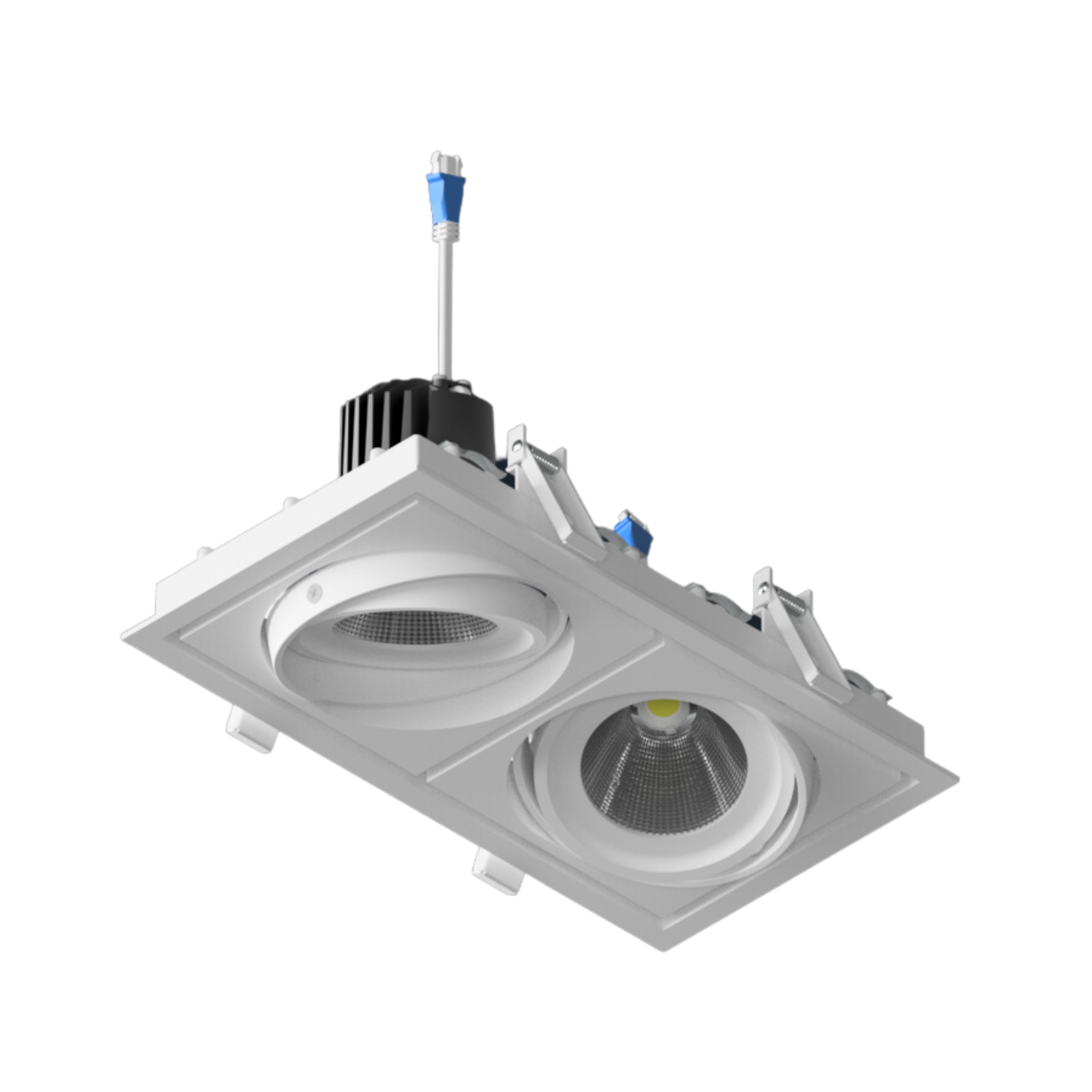

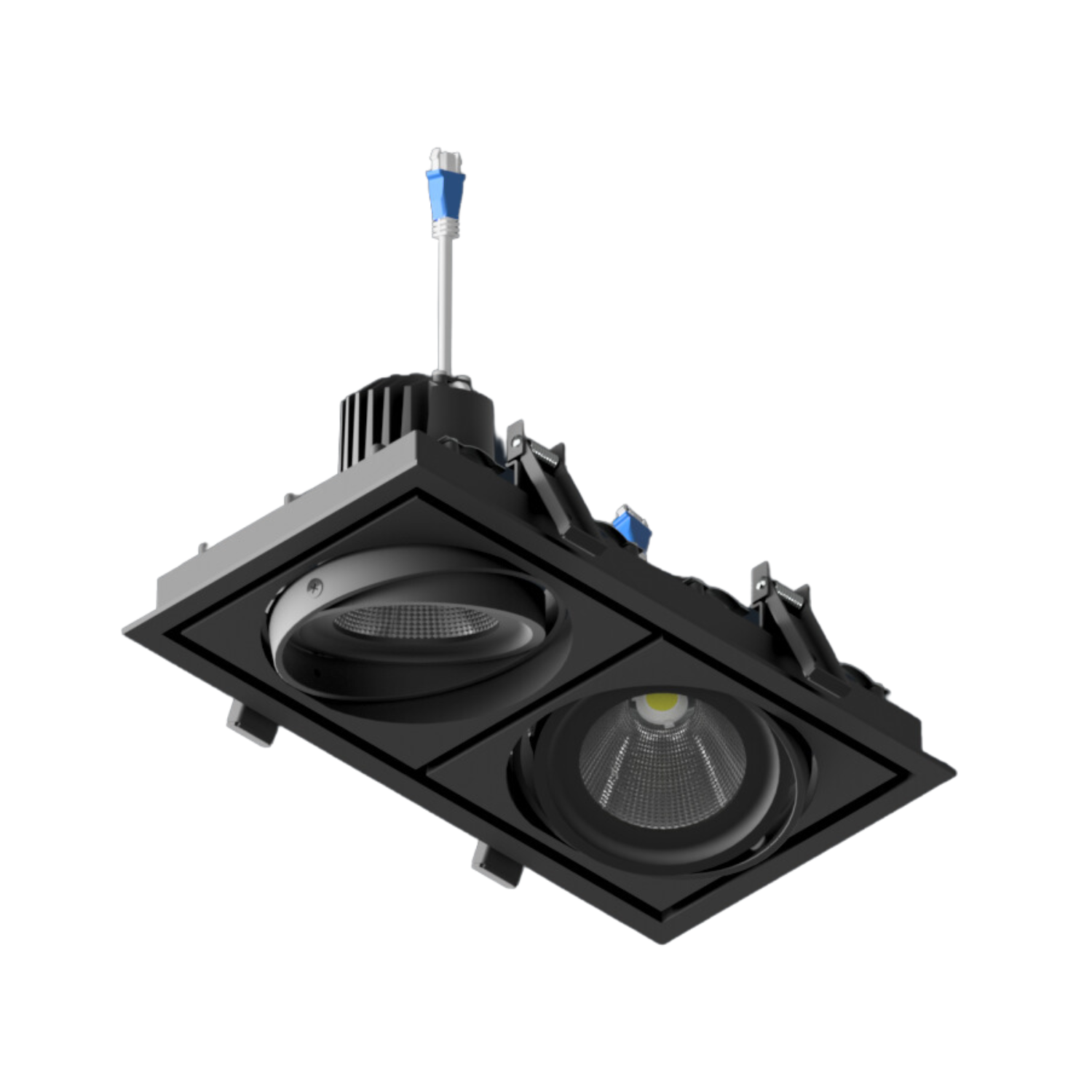

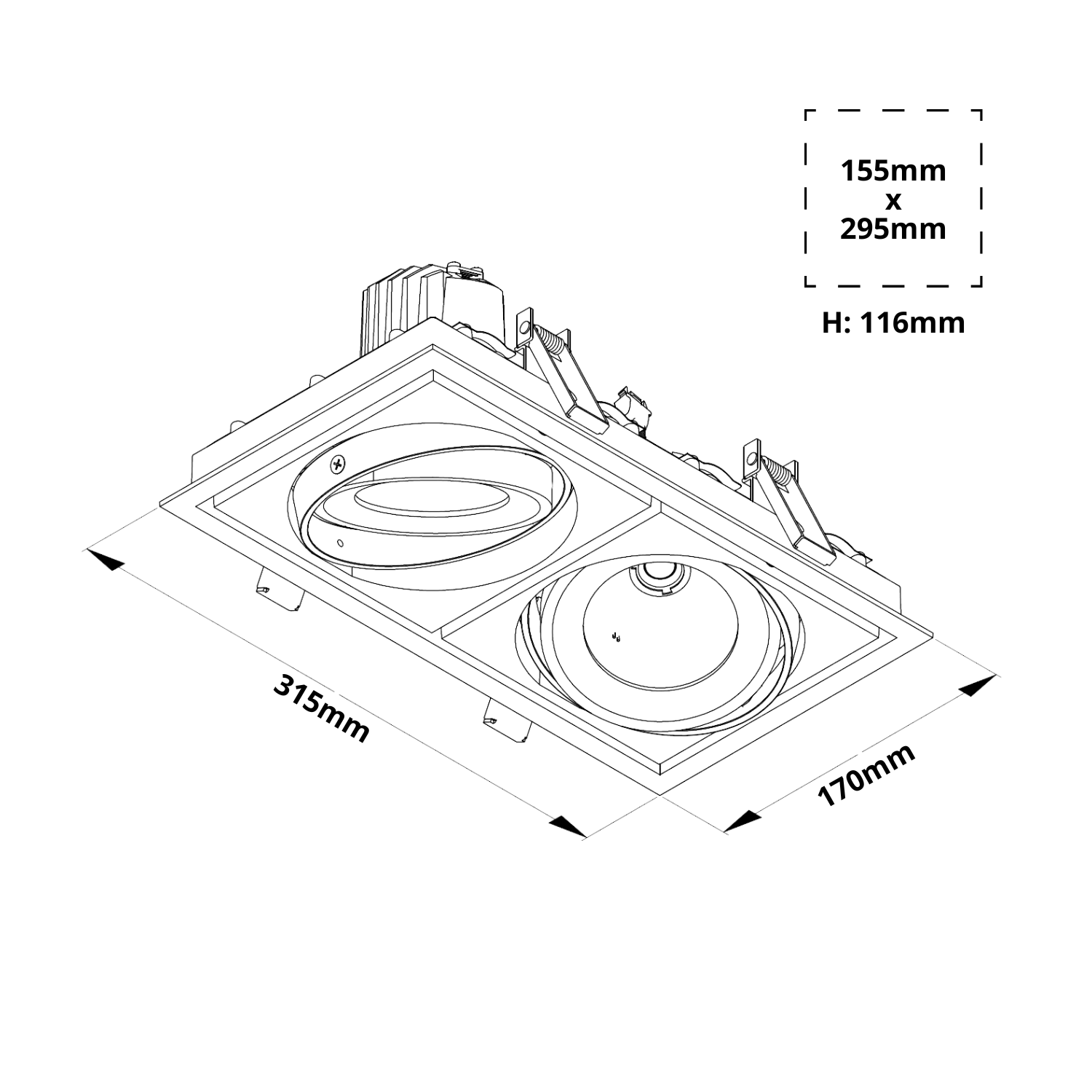

Double Cut out: 155x295mm

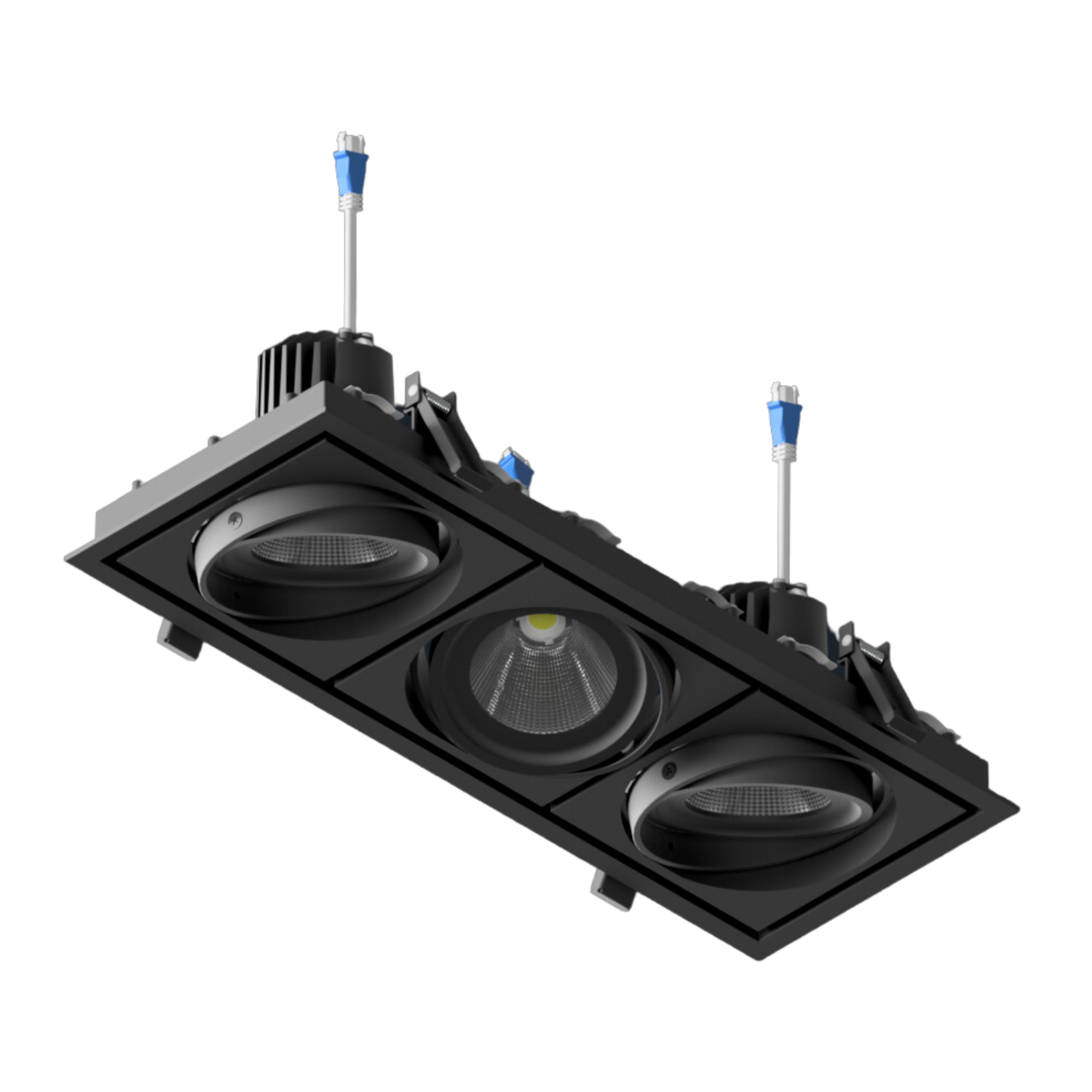

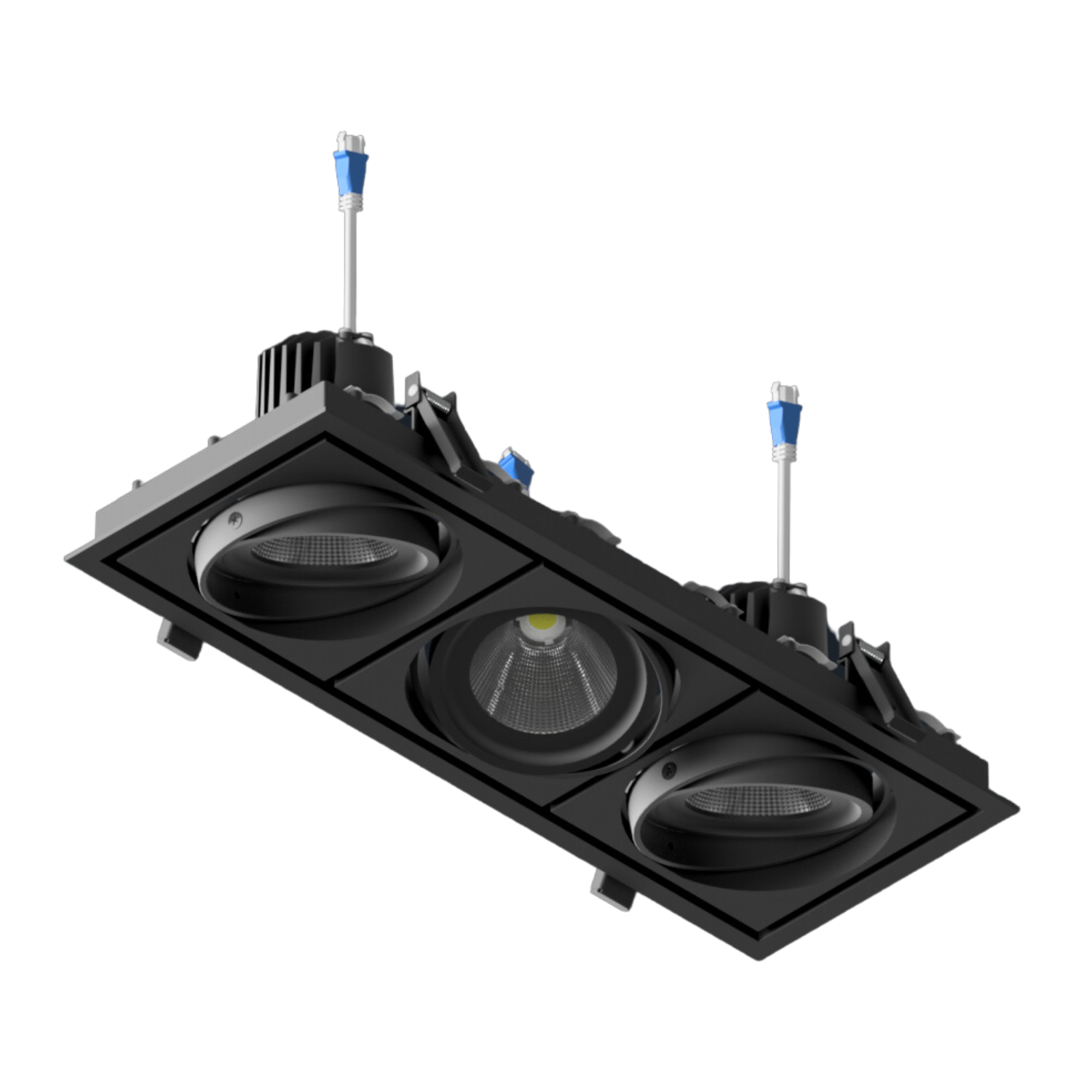

Triple Cut out: 155x435mm
Max LED wattage: 32W
.
.
CKD format (self populate)
.
Type: COB + D50 COB holder required
COB holder mounting distance: 35mm (Zhaga)
COB LES: 13mm
COB Holder height: 3.5mm (Zhaga)
.
.
Populated format (order populated)
.
LED: Bridgelux
SDCM: ≤ 3
CCT: 3000K / 3500K / 4000K / 5000K
CRI: 80 / 90 / Other
