Product Data:
Physical parameters
.
Distributions: 18° / 24° / 36° / 45° / 60°
IP: 20

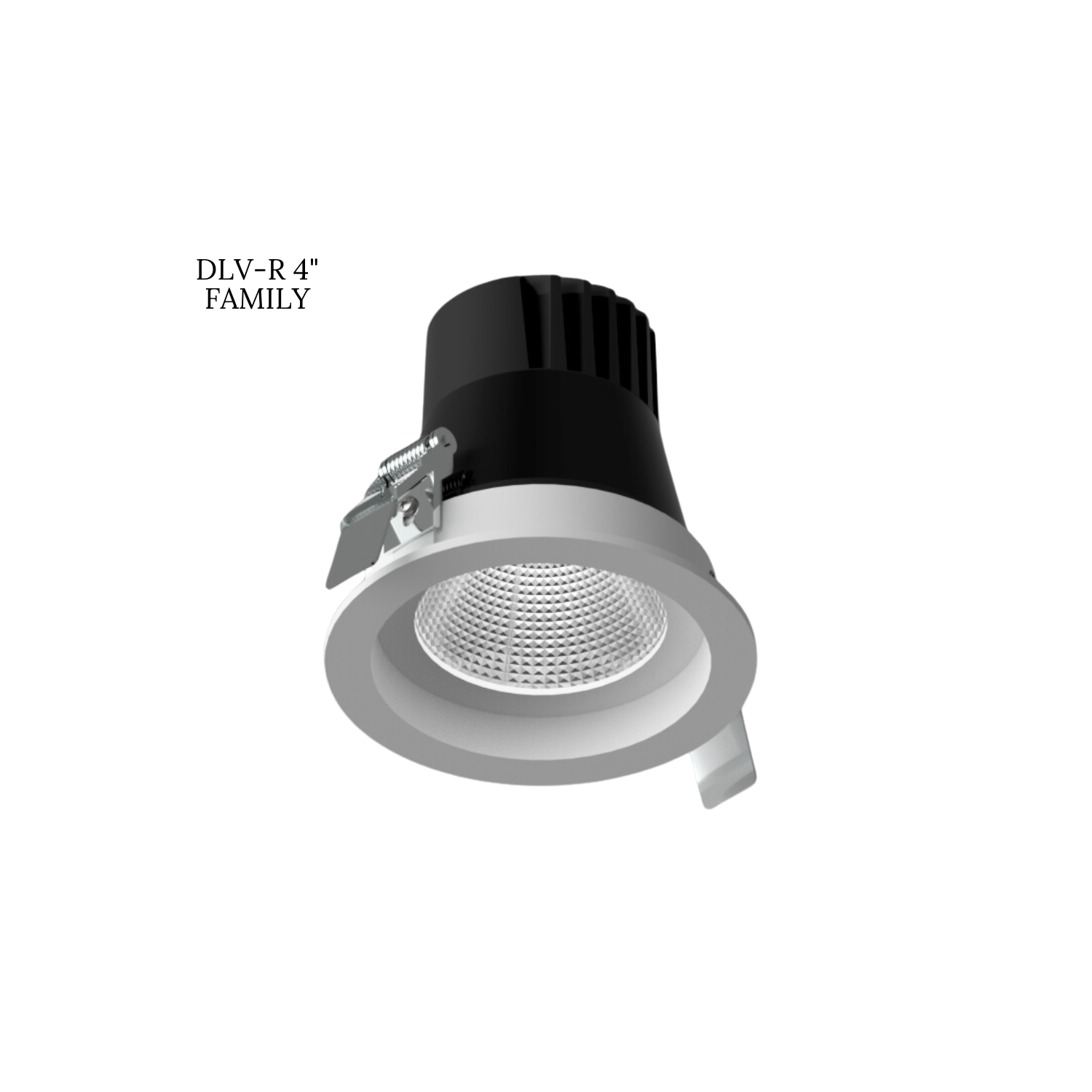

DLV-R 4 Inch
Cut out: 108mm

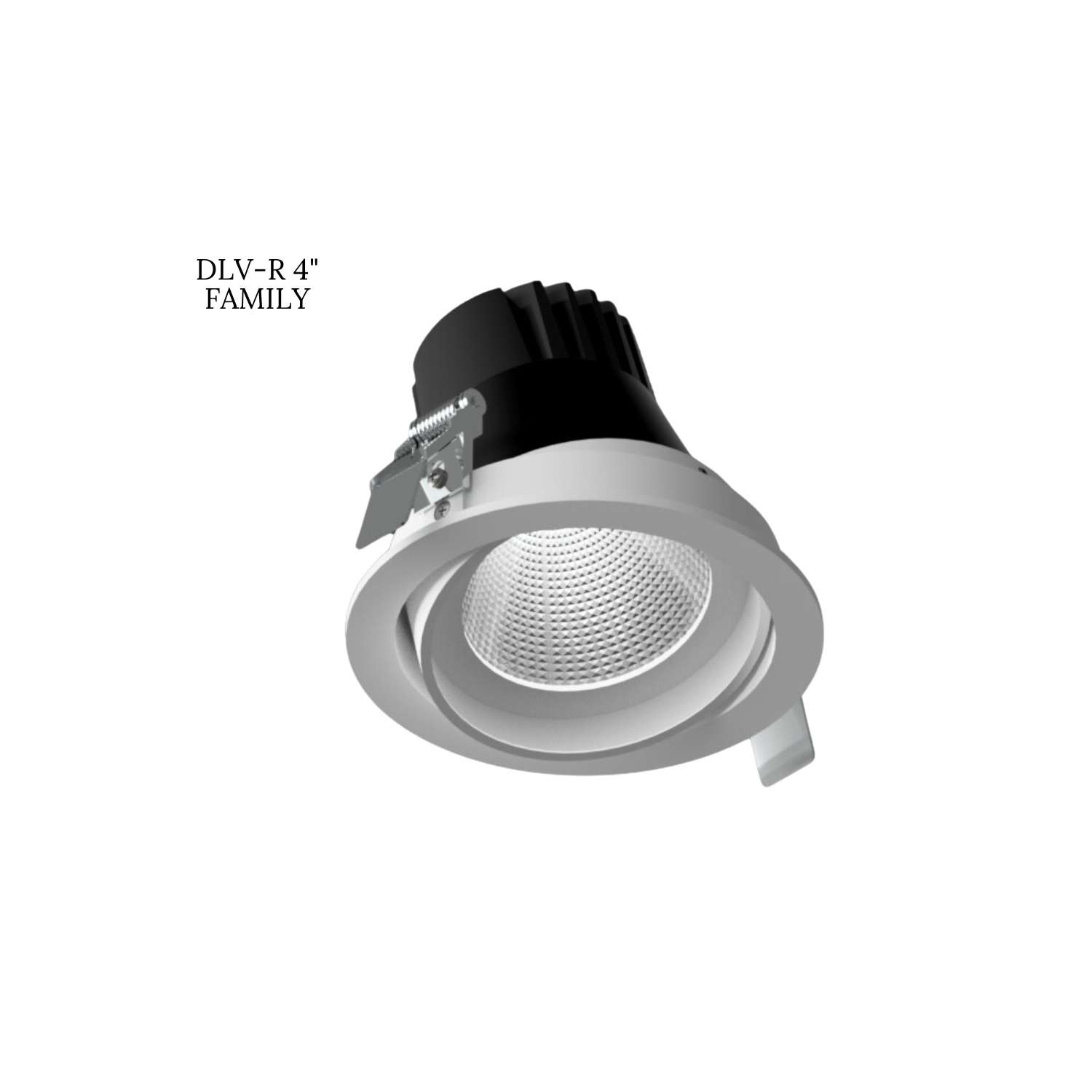

DLV-R 4.5 Inch Tilt
Cut out: 115mm

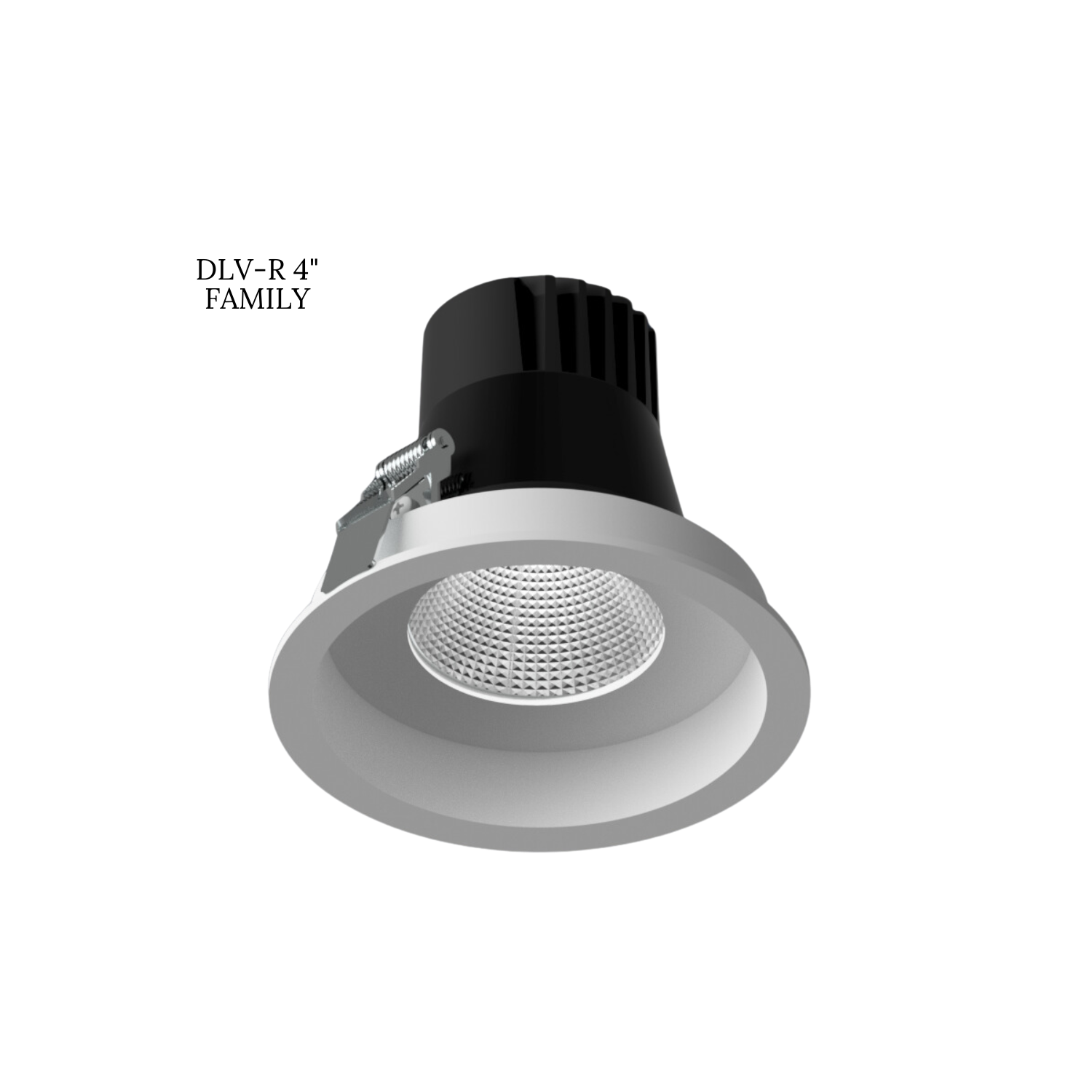

DLV-R 5 Inch
Cut out: 125mm

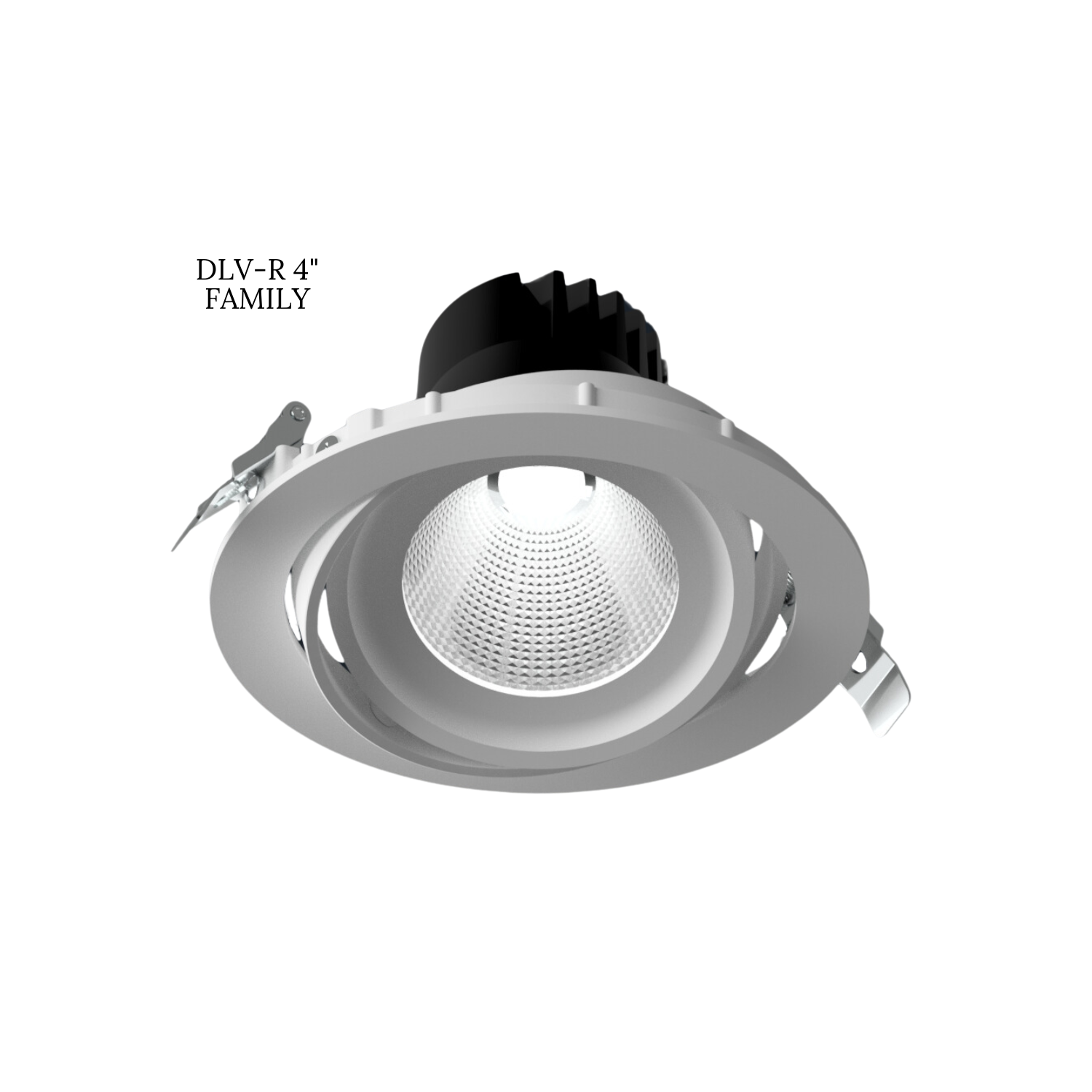

DLV-R Gimbal Round
Cut out: 155mm

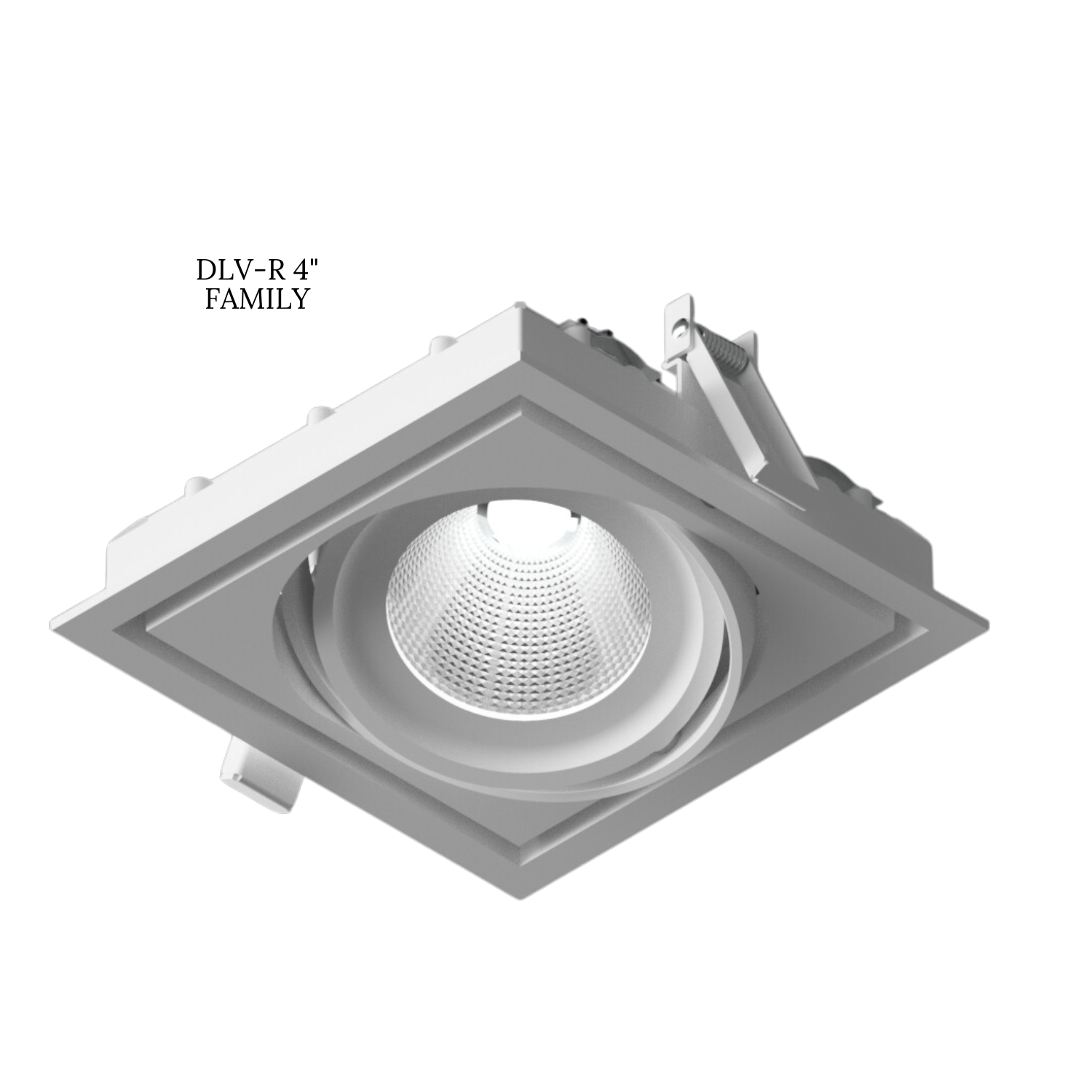

DLV-R Gimbal (Single)
Cut out: 155 x 155mm
DLV-R Gimbal (Double)
Cut out: 155 x 295mm
DLV-R Gimbal (Triple)
Cut out: 155 x 435mm
.
.
CKD format (self populate)
.
Type: COB + D50 COB holder required
COB holder mounting distance: 35mm (Zhaga)
COB LES: 13mm
COB Holder height: 3.5mm (Zhaga)
.
.
Populated format (order populated)
.
LED: Bridgelux
SDCM: ≤ 3
CCT: 3000K / 3500K / 4000K / 5000K
CRI: 80 / 90 / Other
