Product Data:
Physical parameters
.
Distributions: 36° / 45° / 60°
IP: 20

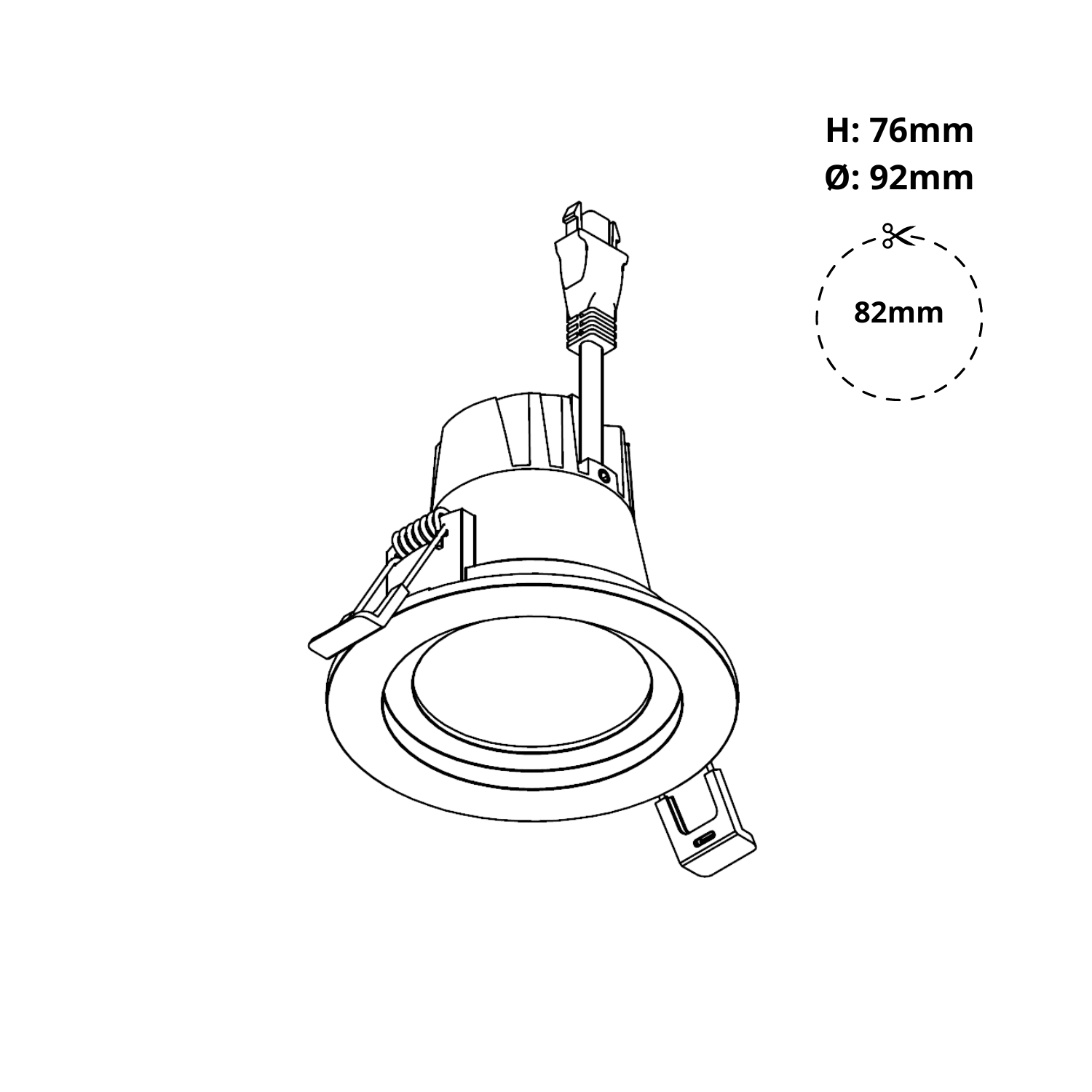

Cut out: 82mm
Max LED wattage: 13W
.
.
CKD format (self populate)
.
Type: COB + D35 COB holder required
COB holder mounting distance: 19 and 25mm (Zhaga)
COB LES: 10mm
COB Holder height: 3.5mm (Zhaga)
.
.
Populated format (order populated)
.
LED: Bridgelux
SDCM: ≤ 3
CCT: 3000K / 3500K / 4000K / 5000K
CRI: 80 / 90 / Other
