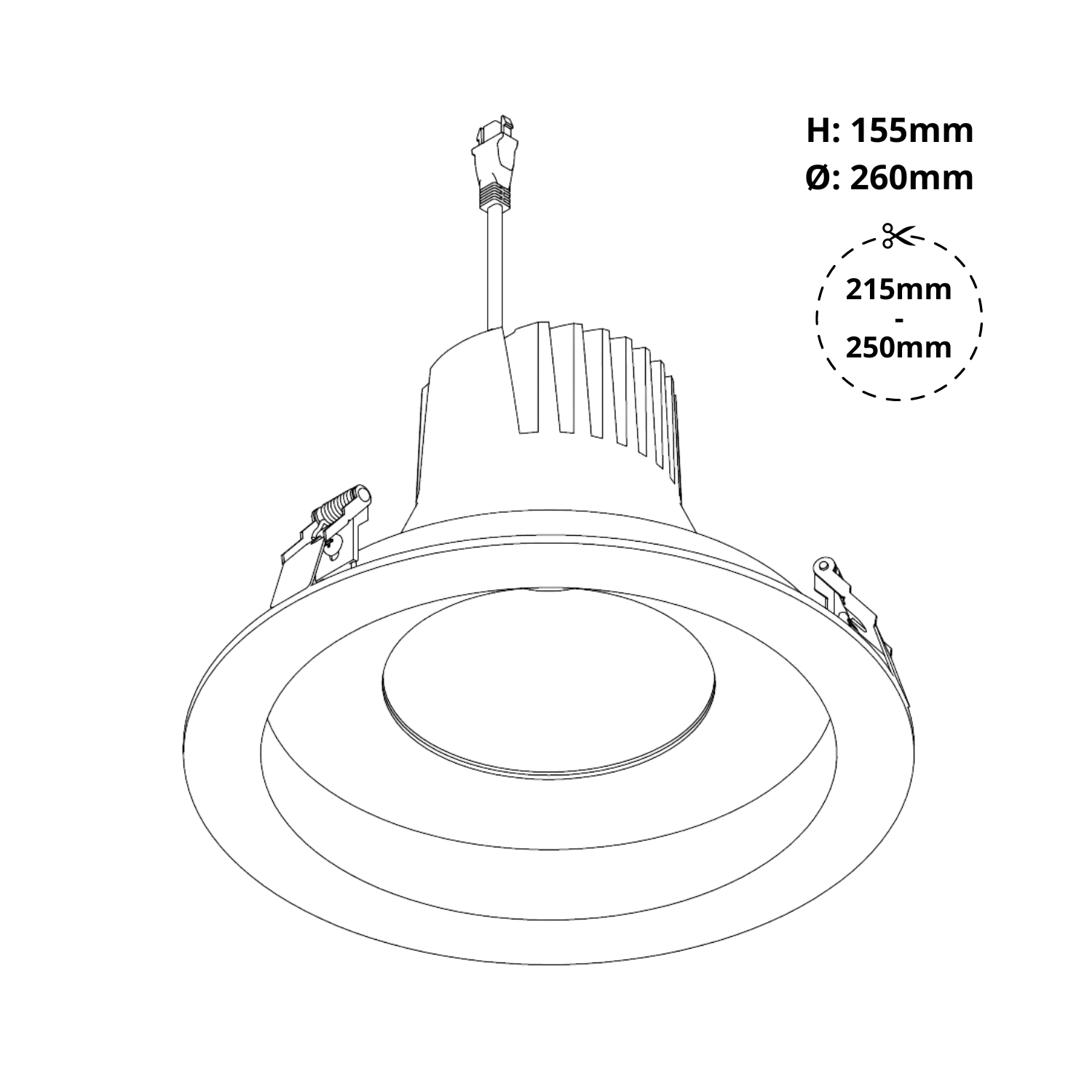

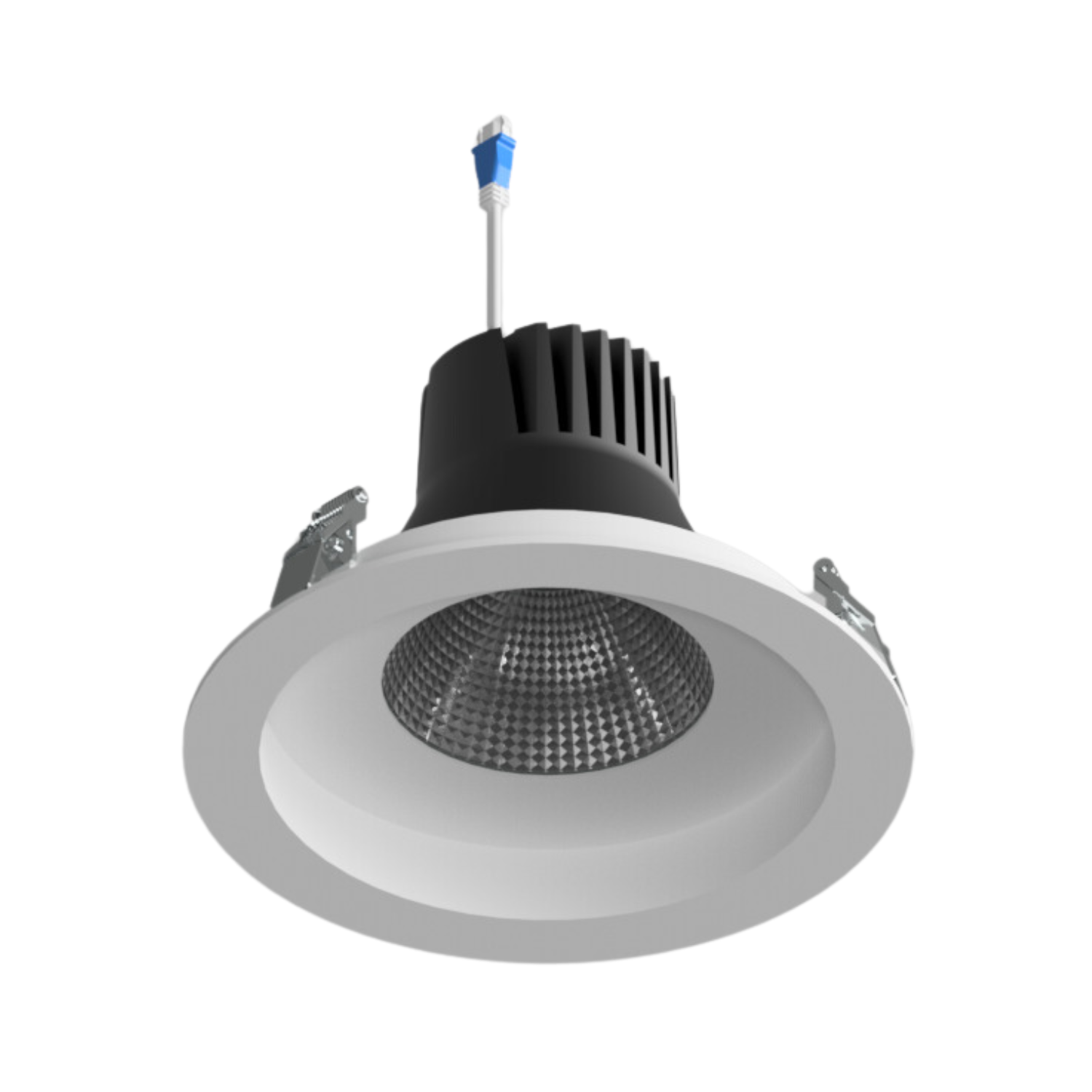

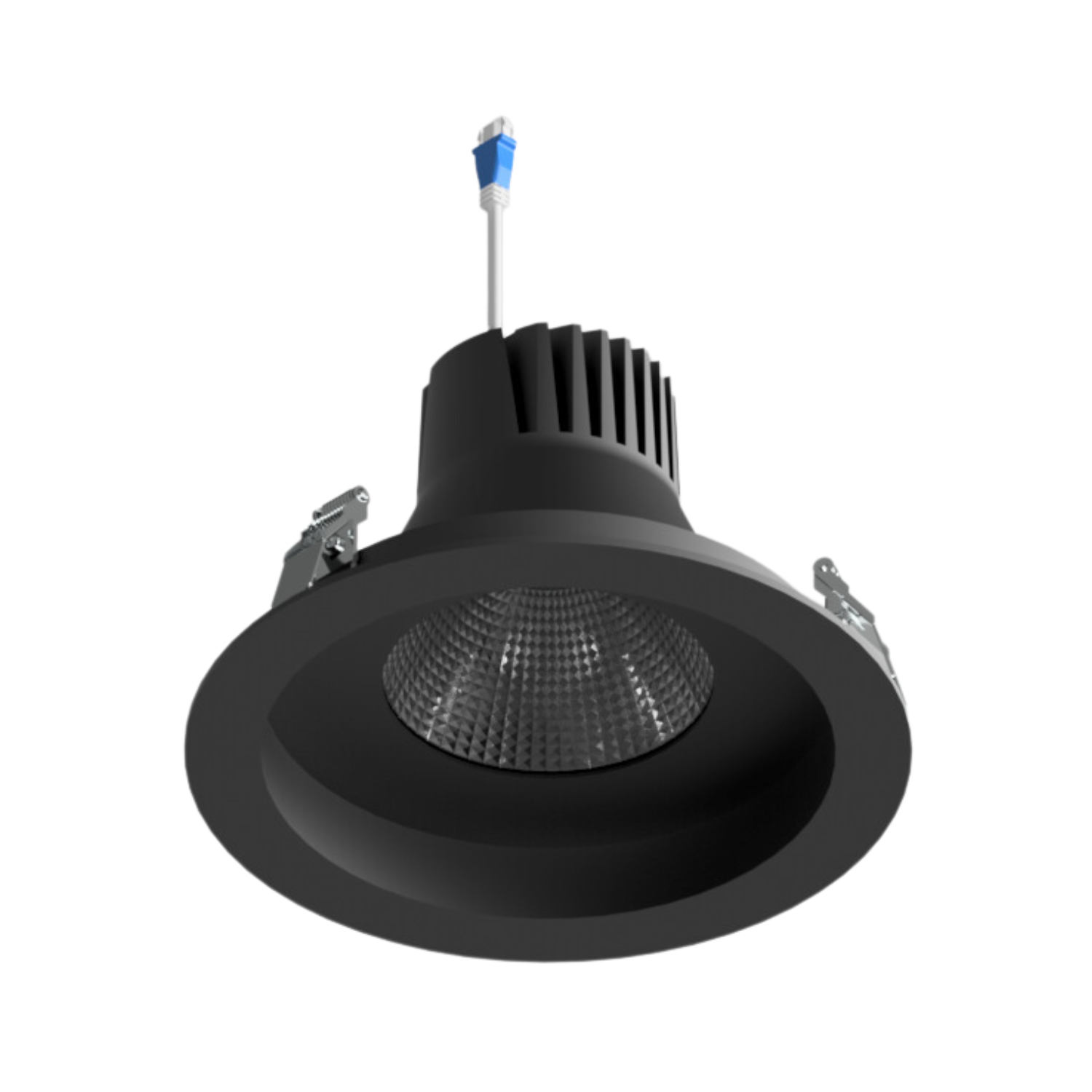

DLV-R 8″ Downlight / Cut out: 215 – 250mm / LED <50W
Product Data:
Physical parameters
.
Distributions: 45° / 60°
IP: 20
Cut out: 155mm
Max LED wattage: 50W
.
.
CKD format (self populate)
.
Type: COB + D50 COB holder required
COB holder mounting distance: 35mm (Zhaga)
COB LES: 13mm or 18mm
COB Holder height: 3.5mm (Zhaga)
.
.
Populated format (order populated)
.
LED: Bridgelux
SDCM: ≤ 3
CCT: 3000K / 3500K / 4000K / 5000K
CRI: 80 / 90 / Other
